PrimeSight CST-4000i Flexible Cystoscope by Laborie

High performance endoscope to meet all your endoscopy needs.

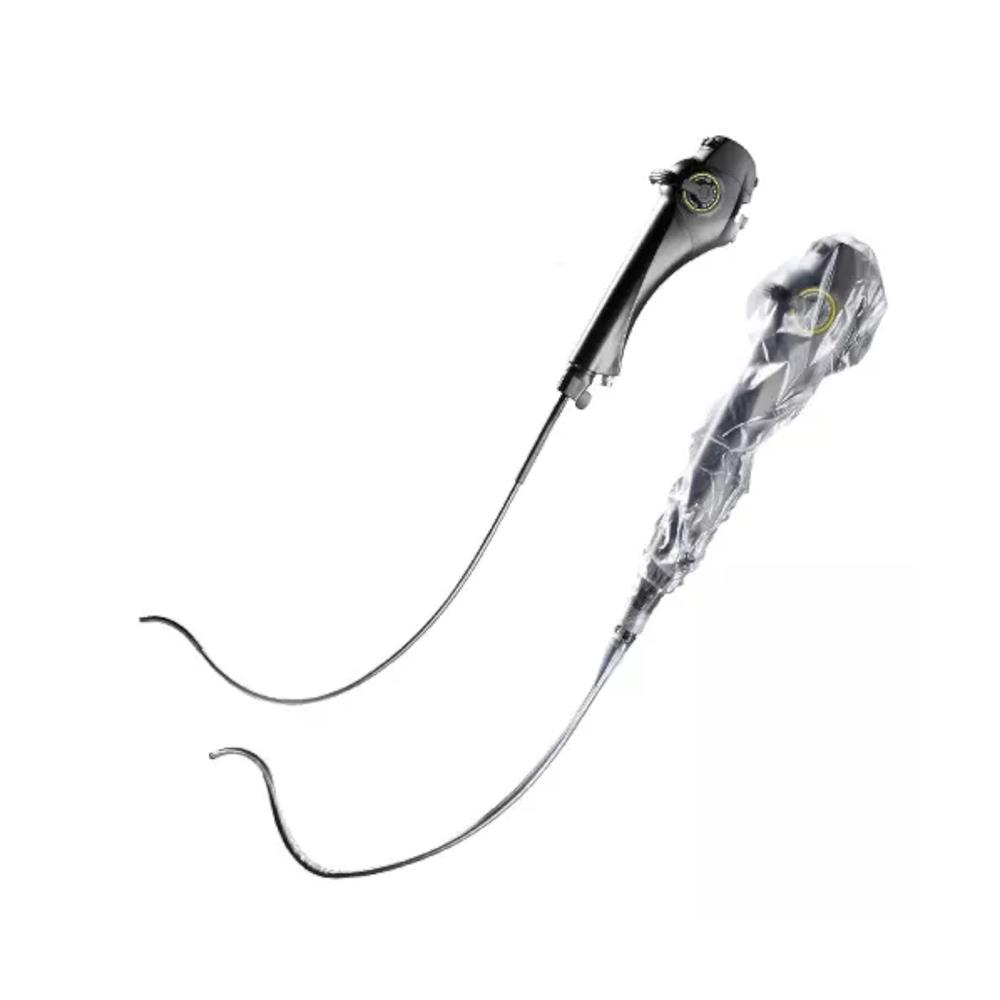

PrimeSight flexible endoscopes provide high performance imaging and functionality to ensure quality diagnostic and therapeutic endoscopic procedures. PrimeSight endoscopes used in conjunction with the EndoSheath protective barrier, provide physicians with premium imaging technology with the efficiency and sterility of a single-use device.

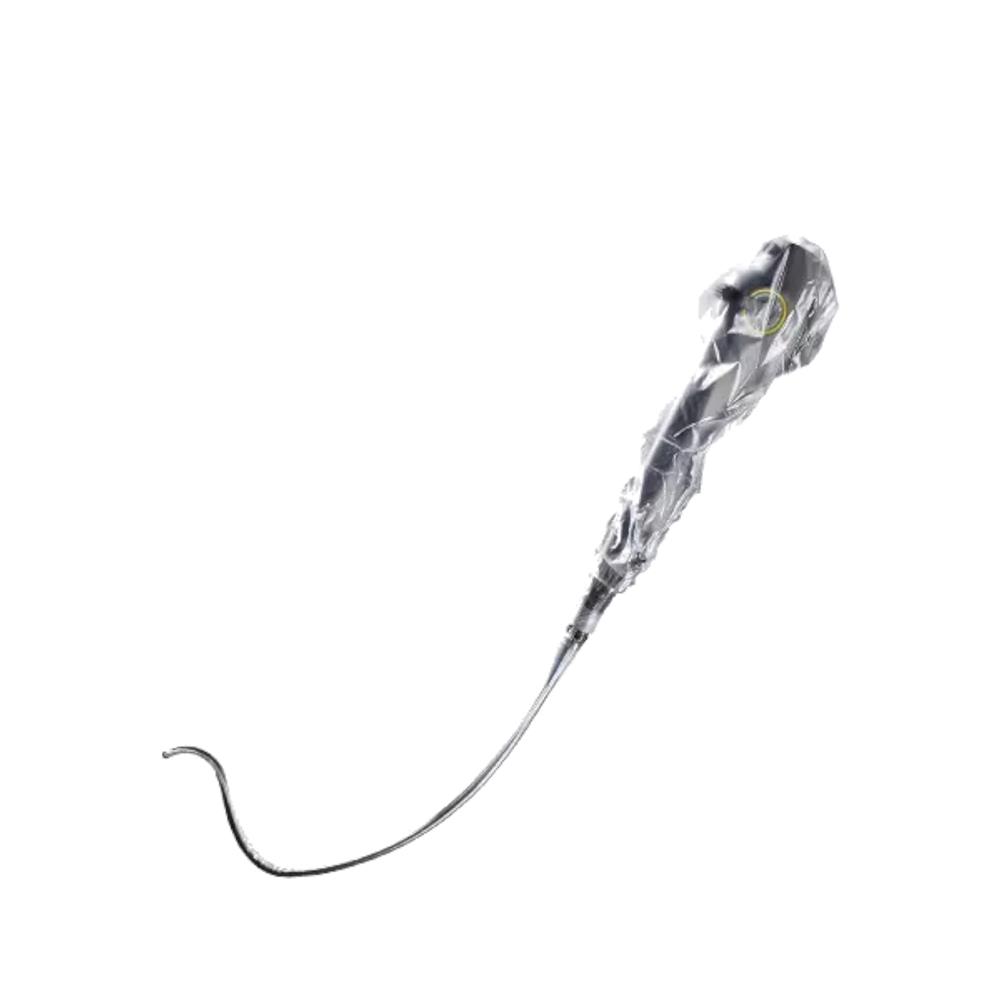

Use with Endoseath protective barriers

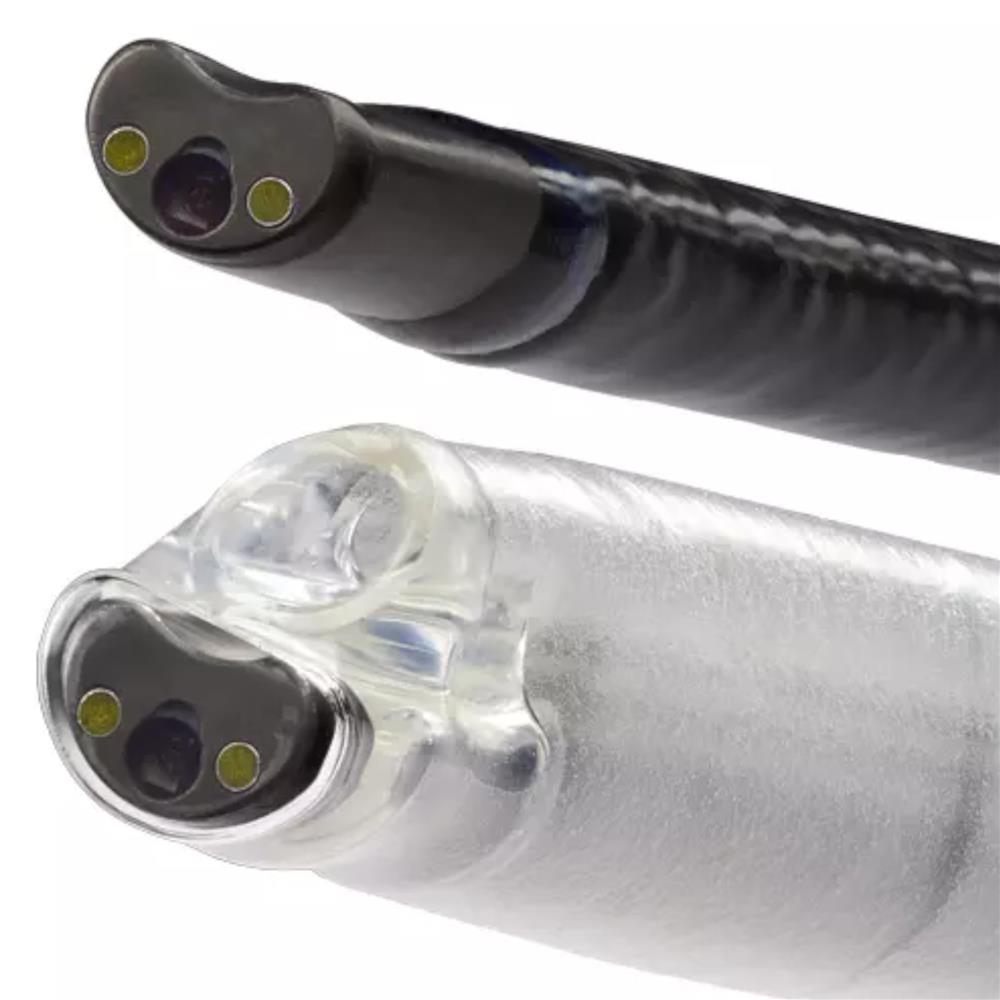

- One innovation of PrimeSight endoscopy is that the working channel required for suction, biopsy, irrigation or other operative needs is incorporated into the EndoSheath protective barrier and not the PrimeSight endoscope. This innovation eliminates the difficult-to-clean channel which exists in conventional endoscopes.

- Helps keep the capital equipment budget low since one PrimeSight scope can do the work of many conventional scopes

- Reduced endoscope reprocessing and down time means that you can meet you endoscopy needs with fewer endoscopes. Plus, unplanned endoscopies can be more easily accommodated.

- You can use the same scope for diagnostic and therapy procedures since the 1.5 mm or 2.1 mm working channel is incorporated into the sheath instead of the endoscope

- Reduced chemical exposure for equipment lowers service and repair expenses

- Reduced staff exposure to toxic disinfection chemicals
Features and Benefits

Unique flow control valve:

- one touch rapid on/off flow into the bladder

Small insertion tube:

- for increased patient comfort

- ideal for strictured urethras

Smaller bending radius

- for optimal views of the bladder neck and smaller bladders

- fast and easy retroflexion

BLS 1000 (battery powered light source) compatible

- maximizing portability and light output

Intuitive and standard angulation available

- to meet physician preferences
Features and Benefits

Unique flow control valve:

- one touch rapid on/off flow into the bladder

Small insertion tube

- for increased patient comfort

- ideal for strictured urethras

Smaller bending radius

- for optimal views of the bladder neck and smaller bladders

- fast and easy retroflexion

BLS 1000 (battery powered light source) compatible

- maximizing portability and light output

Intuitive and standard angulation available

- to meet physician preferences

Technical Specifications:

Field of View: 116o +-11o

Depth of Field: 3-50mm

Angulation: 215o U / 140o D

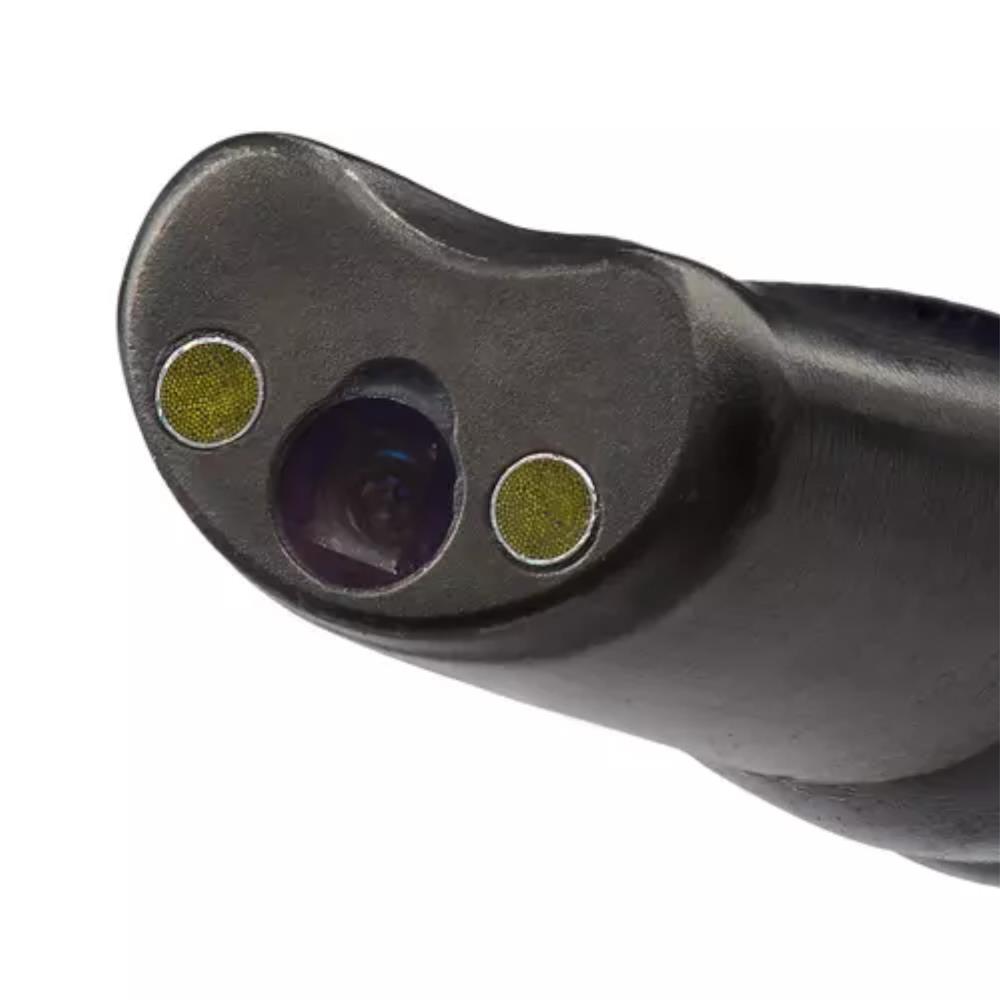

Distal Tip OD: 4,37mm +-0,05

Insertion Tube OD:

- With CF 1,5: 15,15Fr

With CF 2,1: 16,65Fr

Working Length: 370mm

*(o = degrees)

**Our CST 4000i Cystoscope (i for intuitive) is equivalent to the Storz type articulation.

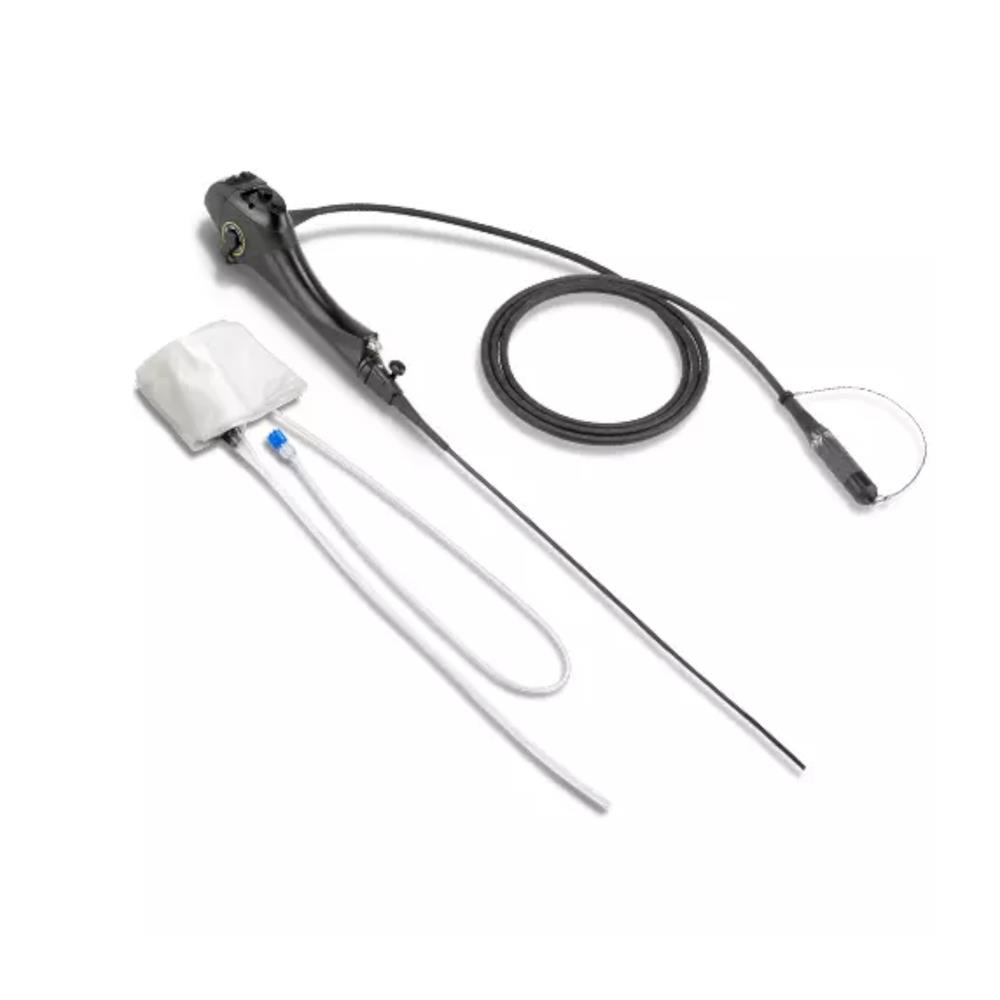

Set Includes: CST 4000i Cystoscope, EtO Cap, Carrying Case, User's Manual
