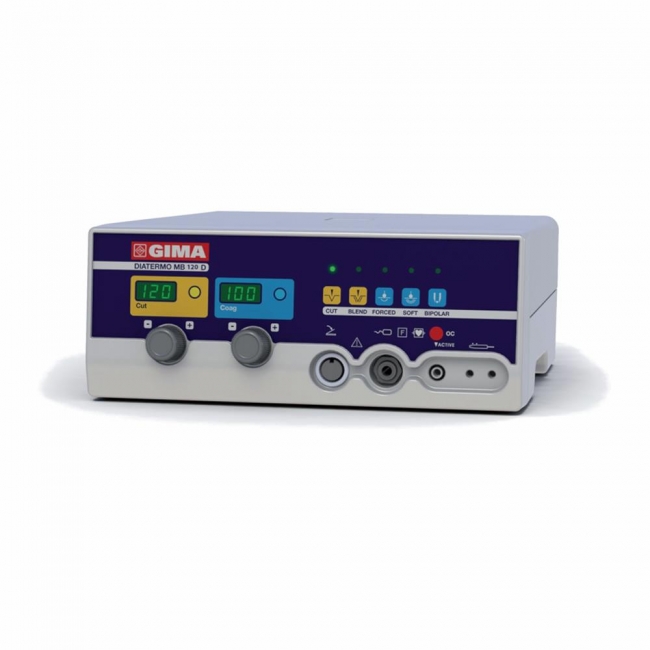

Bipolar electrosurgical unit MB 120D - 120 Watt

MB 120D is a high frequency electrosurgical unit which suitable for operating in light and medium surgeries.

Through its performance has different modes to allow, pure CUT, cut-coagulation BLEND, superficial coagulation FORCED COAG, deep coagulation in absence of necrosis SOFT COAG and, with a bipolar adapter, achieves BIPOLAR coagulation.

The digital reading of delivered power and the monitoring of operative function by microcontroller guarantees the absolute reliability on any working conditions.

MB 120D allows a highly professional surgery thanks to the user-friendly interface and safety solutions normally used.

The connection of neutral electrode is constantly monitored and safely fixed on patient using split neutral electrode. The possibility to control by the handle the monopolar output functions as well as the delivery of output power, allows to implement the surgical operation without turning away the surgeon attention from the surgical field.

Specifications:

Max output power CUT 120 W-250 Ω
Max output power BLEND 90 W-200 Ω
Max output power FORCED COAG 80W-150Ω
Max output power SOFT COAG 60 W-100 Ω
Max output power BIPOLAR 40 W-100 Ω
Working frequency 600 KHz
Patient circuit F
Selectable input voltage 115-230 Vac
Mains frequency 50-60 Hz
Electrical input power 230 VA
Size WxHxD  254x104x288 mm
Weight: 5 Kg
