3-channel ECG Holter DMS-300-3A without software

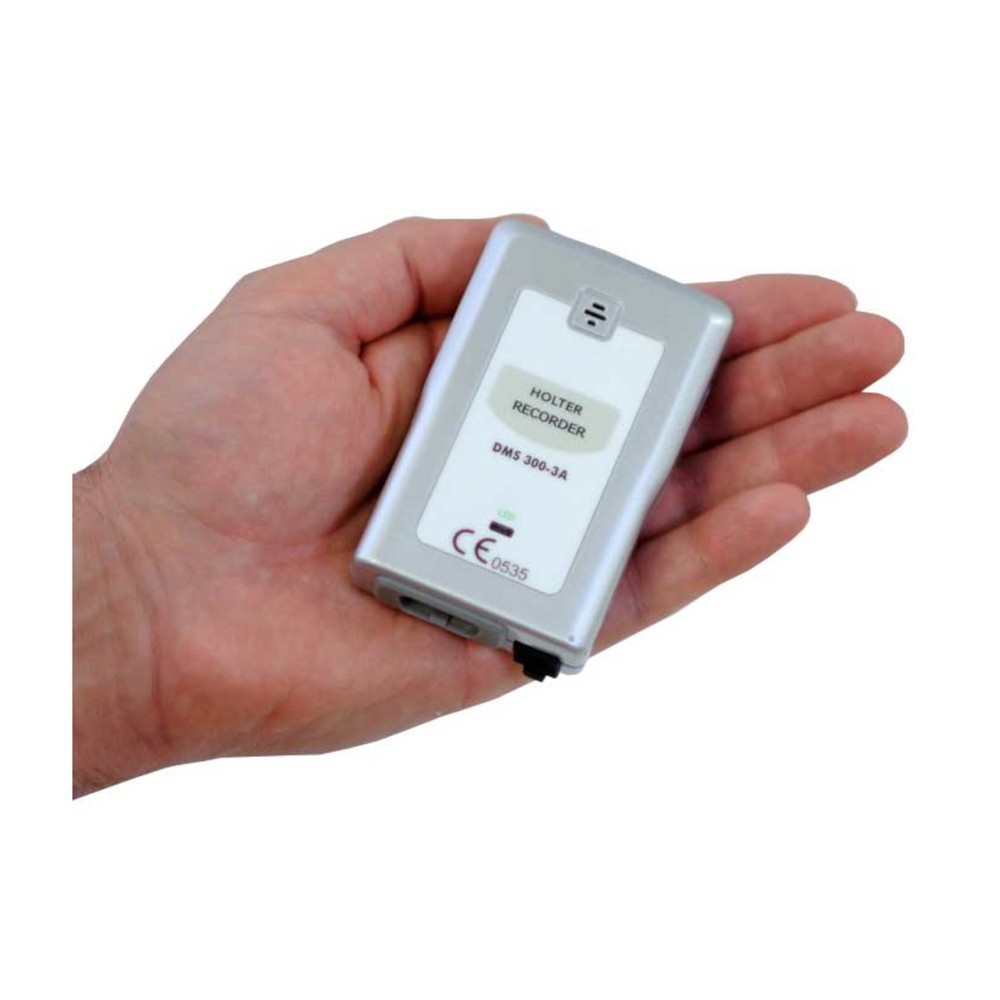

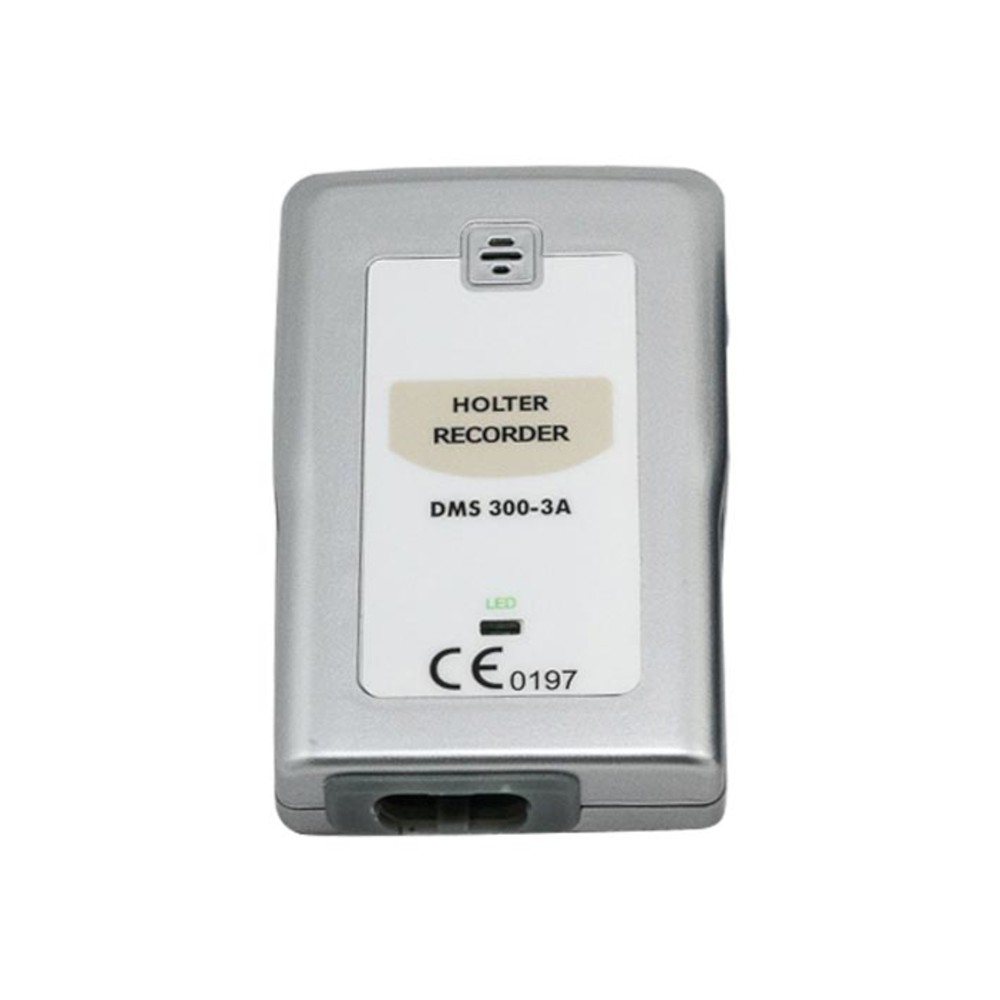

ECG Holter DMS-300-3A, is a miniature, lightweight 3-channel ECG recording device.
Software with code 08420 must be ordered.
- Description
Description
ECG Holter DMS-300-3A, without software
DMS 300-3A is a miniature, 3-channel ambulatory ECG recorder capable of continuous recording for up to four (4) days.
The read-in sample rate is 4.096 samples per second. The memory is 512 MB and is built onto the recorder’s circuit board.
The recorder is powered by a single AAA battery.
It comes with 7 electrode ECG cable.
Is used for the below indications:
• Evaluation of patients with symptoms suggesting arrhythmias & coronary problems.
• Evaluation of patients with pacemakers.
• Evaluation of patient heart rate changes and QRS interval changes.
• Evaluation of patient responses to drug therapy treatment.
Technical Specifications
Recording Duration: Up to 4 days (24h-168h) of continuous ECG recording.
Sampling Rate: 4,096 samples per second.
Sample rate(Hz): 256Hz-4096Hz
Memory: 512 MB onboard (built into the recorder’s circuit board).
Saving volume(M): 256MB - 1024MB
Dimensions: 88 x 55 x 21 mm
Lightweight: 57 gr
Power Supply: Single AAA battery (1xAAA).
Weight Battery: 100g
ECG Cables: Available in 7-lead configurations, with cable lengths of 60 cm.
Compatible Software (not included): CardioScan CS10, CS11, and CS12 (software not included).
Software analysis for ECG Holter DMS-300-3A - version 79A (code 08420) is required.
