Ecg Holter+ Software
Ecg Holter+ Software
- Description
Description
24h ECG Holter with software

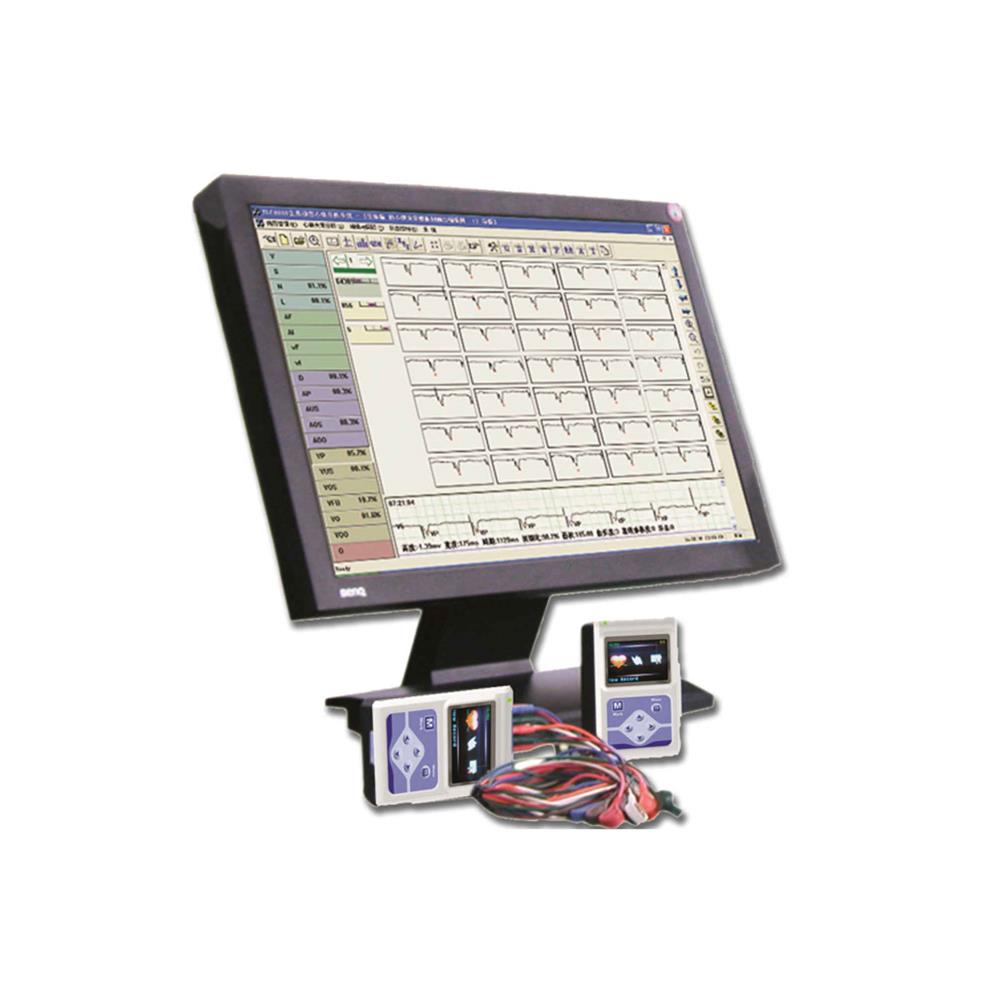

ECG Holter includes ECG recorder and software connectable to a computer system for data transmission and analysis or even directly to a laser printer. The recorder has built-in flash storage media to increase memory capacity. The sampling rate of 1,000 sampling/sec has improved the quality of waveform and accuracy of measurements. Accuracy of the system is also ensured by AHA and MIT data.
Features
windows software interface (GB, IT, PL, PT, RU)
quick and accurate analyzing and display software
special editing system of R point
perfect analysis function of ST segment
analysis function of T wave of all channels and T wave trend graph
review of ECG trend graph
analysis system of HR variability, providing regular SDNN, SDANN, RMSSD, LF, HF, time domain and frequency domain
QT analysis
cquire pacing ECG directly without separate channel with additional the functions of VCG, VLP, TVCG, HRT, TWA
Recorder:
- 12 channel Synchronized ECG Acquisition
- small ECG recorder with OLED color screen to display real time ECG waveform and review storage data.
- capacity up to 2G
- selectable sampling rate, 200, 500, 1,000 sampling/sec
- sampling accuracy: 12 bit
- built-in FLASH storage media, to prevent the flash card from damage due to repeated insertion and pull out
- USB interface
- operating system: Win 98, 2000, XP, 7, 8, 10
Technical Specifications
Scale voltage: 1mV±5%
Standard sensitivity:10mm/mV±5%
Noise level: =30µV
CMRR: =60dB
Frequency response: 10Hz as benchmark, 0.5Hz~55Hz; -3dB
Time constant: >3.2s
Scan speed: 25mm/s±5%
Enduring polarization voltage: ±300mV
Least measurement signal: 50µV p-p
Interference between channels: scan track deflection (result from interference between channels) <0.5mm
Product safety type: type B (internally powered)
Size: 111 (L) x60 (W) x25 (H) mm
Net weight: 105g (without battery)

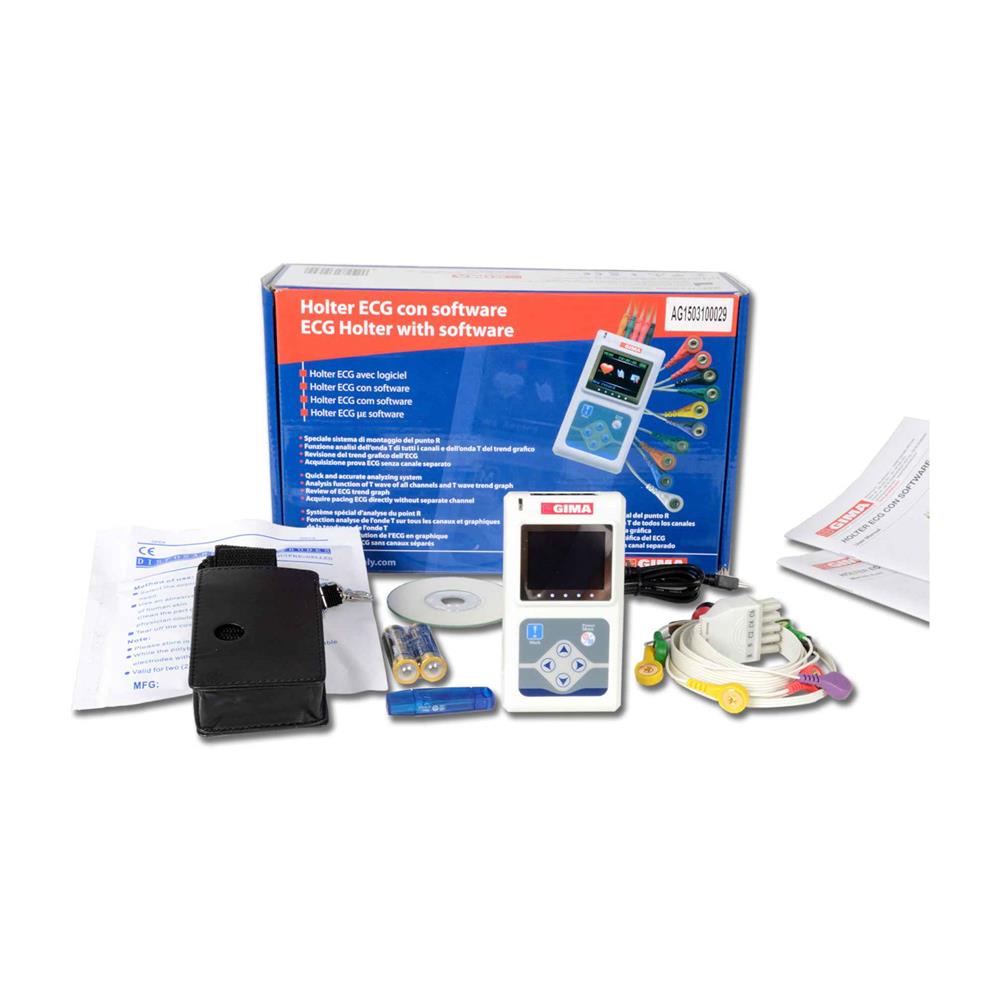

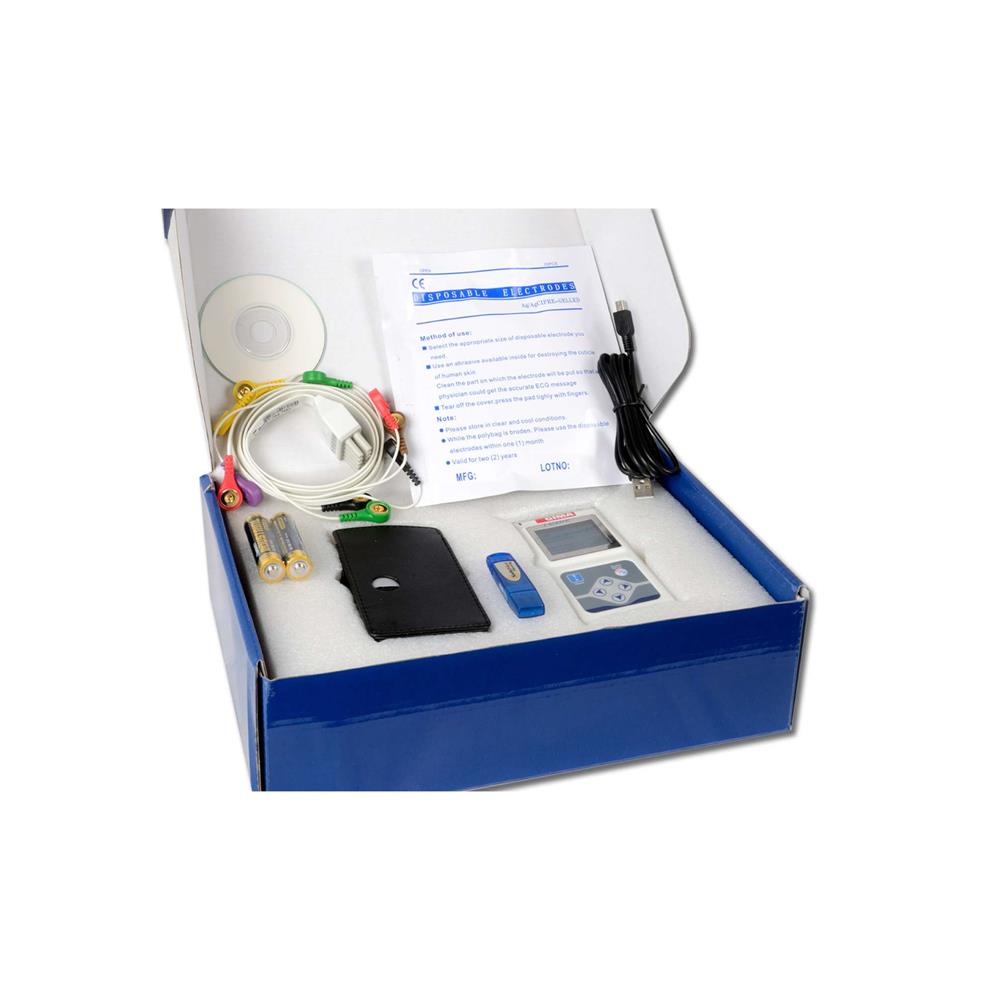

Standard accessories
Holter recorder
CD with software (GB, IT, PL, PT, RU)
leads patient cable
10 disposable ECG sensor
pouch for hanging recorder
USB cable for data downloads
Instruction Manual (GB, IT)
