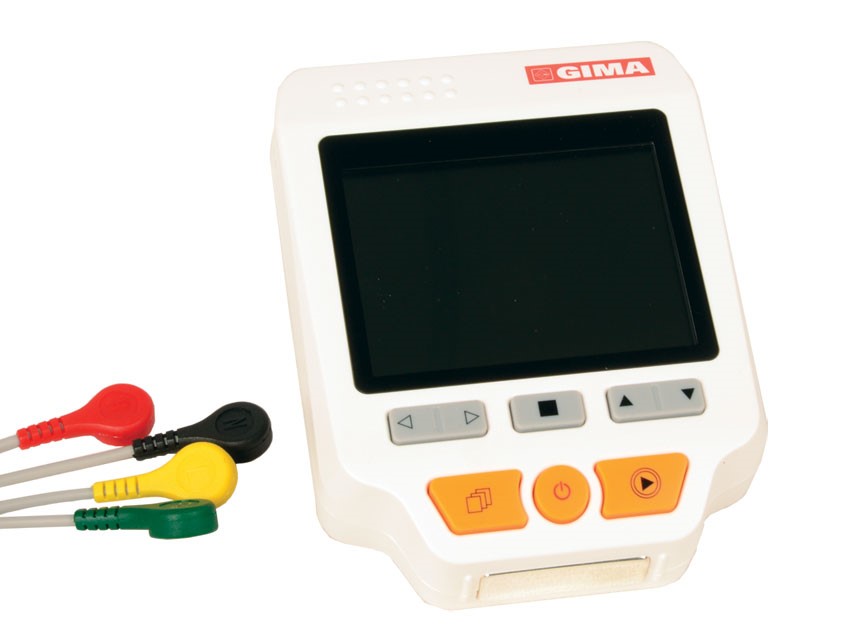

Cardio-C, 3-channel pocket ECG
Small size, and light-weight pocket ECG for fast and precise measurements.
Features:
- One-key measurement
- Clear ECG waveform and interpretation of results on color dot-matrix TFT 3.5" screen
- Up to 19 types of measurement results
- High capacity built-in memory: 24 hours records storage and review for single channel waveform and 8 hours record storage and review for 3-channel waveforms
- Fast measurement: by built-in metal electrodes, on palm, chest or leg or by external lead wires (needs optional limb and chest electrodes)
- Data management to review or delete data records locally or via software to PC

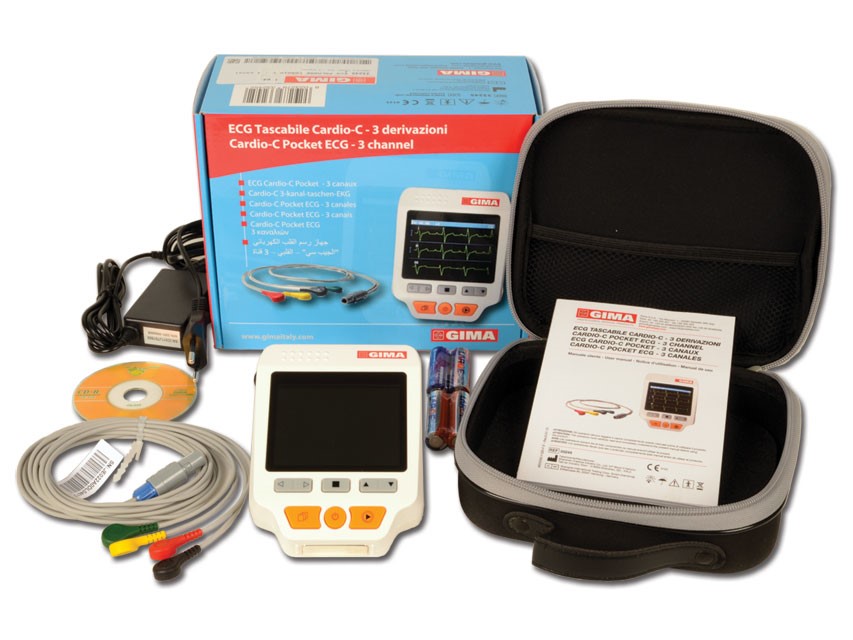

Supplied with ECG viewer software, USB cable, power transformer, ECG 4 pins lead wire, 25 disposable electrodes, manual (GB, FR, IT, ES, DE, PT).
Technical Specifications:
Heart rate measuring range: 30 bpm ~ 240 bpm
Heart rate measuring accuracy: ± 2 bpm or ±2% whichever is greater
ECG bandwidth: 0.5 Hz ~ 40 Hz
Internal noise level: = 30µVp-p
Display scale: 5.0 mm/mV ±10%
Common-mode rejection ratio (CMRR): = 60 dB
Waveform sweeping speed: 20 mm/s ±10%
Input loop current: = 0.1 µA
Input impedance: = 5 mO
Power: 4 AA alkaline batteries
Supply voltage range: 4.4 ~ 6 VDC
Max average working current: = 160 mA
Auto power-off: can be adjustable between 1-5 mins
Low battery indication: 4.4 VDC ±0.2 VDC
True colour 3.5" TFT display
Pocket size: 13 x 9.5 x 3.2 cm
32 MB memory inside
