Spencer Kompak electronic ventilator 170

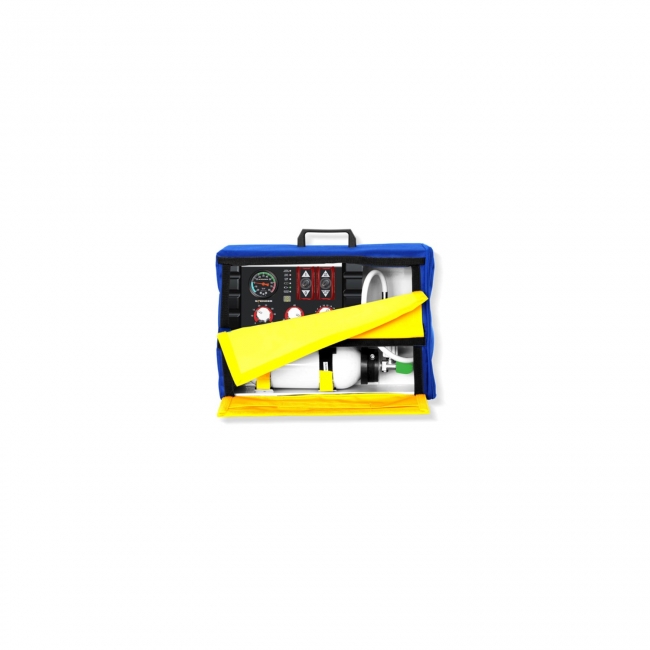

Compact ventilator with carrying case containing the 170 NXT ventilator and oxygen cylinder with pressure regulator ready for use.
It is indicated for use in adult patients and children.
It has protection against accidental activation of the AIR mixture selection lever, pressure gauge with special color coding for easy recognition of pressure values, the inlet and outlet ports are placed on the side of the device to facilitate the connection and disconnection of the device components and offers greater protection
Also, there are control buttons on a high contrast background for better recognition of the set values, while the position and shape of the adjustment buttons make it easy to configure in all operating conditions.
Made of solid and light aluminum frame.
Alarms for ventilation monitoring and device management.

Technical Specifications:
Drive: Electronic
Frequency: 5 - 40 BPM
Alarms: high pressure, pneumatic supply, low battery
Flow: 2 - 20 l/min
I/E Ratio: 1:2
Oxygen concentration: 60% or 100% Patented system
Overpressure valve: 20-60 cm H2O (adjustable)
Battery operating time: Approx. 3 hours
Manometer scale: -20 to +80 mbar
IP protection: IP24
Non re-breathing valve: 60 cm H2O
Pneumatic supply: from 280 to 600 kPa
Pneumatic connection: UNI
External source: 12 V DC (on request AC/DC adapter 100-240 V, 50/60 Hz)
Internal source: Rechargeable Ni-Mh battery
Dimensions: 270 x 177 x 210 mm
Weight: 3.5 Kg
Structure: aluminum, steel, brass, PE
