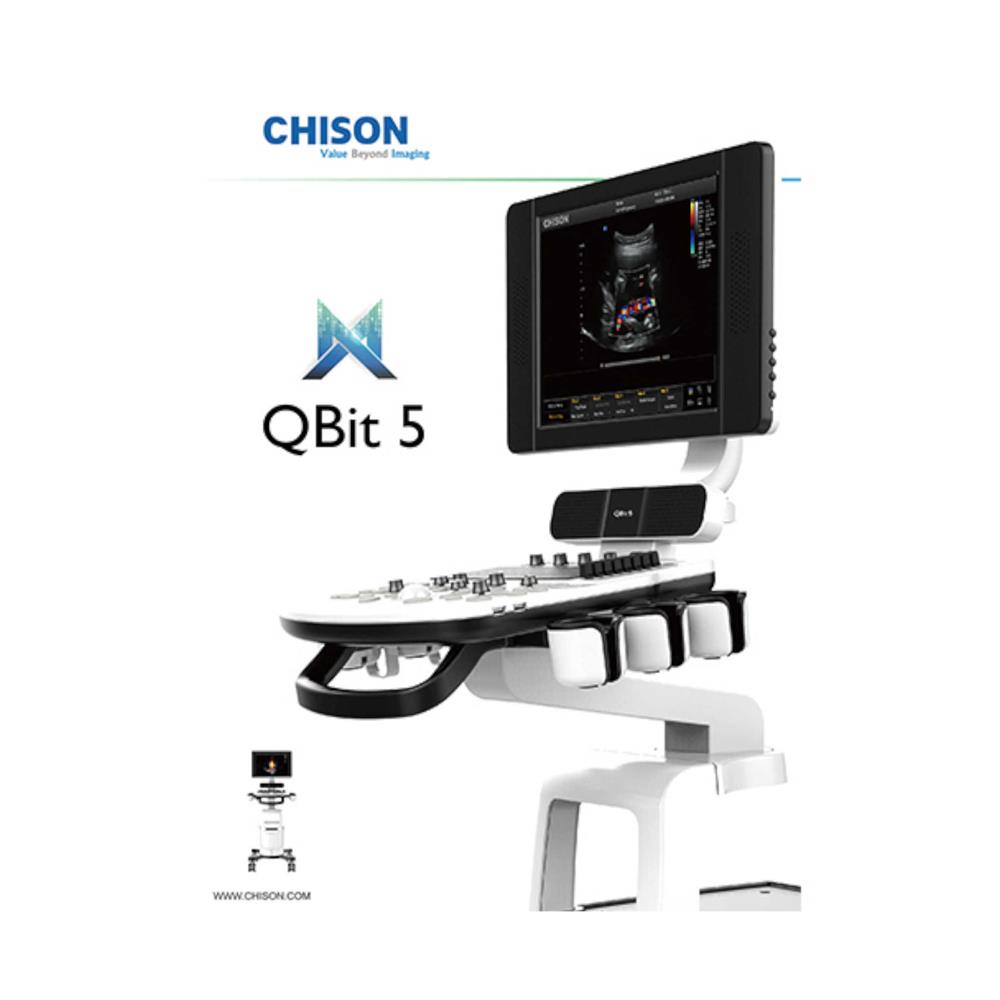

Color ultrasound QBit 5 Main unit (with Large screen 15”)
Code: 07355
Manufacturer Ref: QBIT 5
Manufacturer:
Chison
7.688,00 €
5.828,00 €
(4.700,00 € + VAT)
Description:
QBit 5 Ultrasound Main unit. ***Does not include the probes.
ACCESSORIES
Code:
07219
Price without VAT
2.100,00 €
Price with tax
2.604,00 €
In stock
Code:
07221
Price without VAT
2.100,00 €
Price with tax
2.604,00 €
Expected
Code:
07222
Price without VAT
2.800,00 €
Price with tax
3.472,00 €
In stock
Total:
5.828,00 €
Availability:
In stock
Delivery time:Delivery 1 to 3 days
- Description
Description

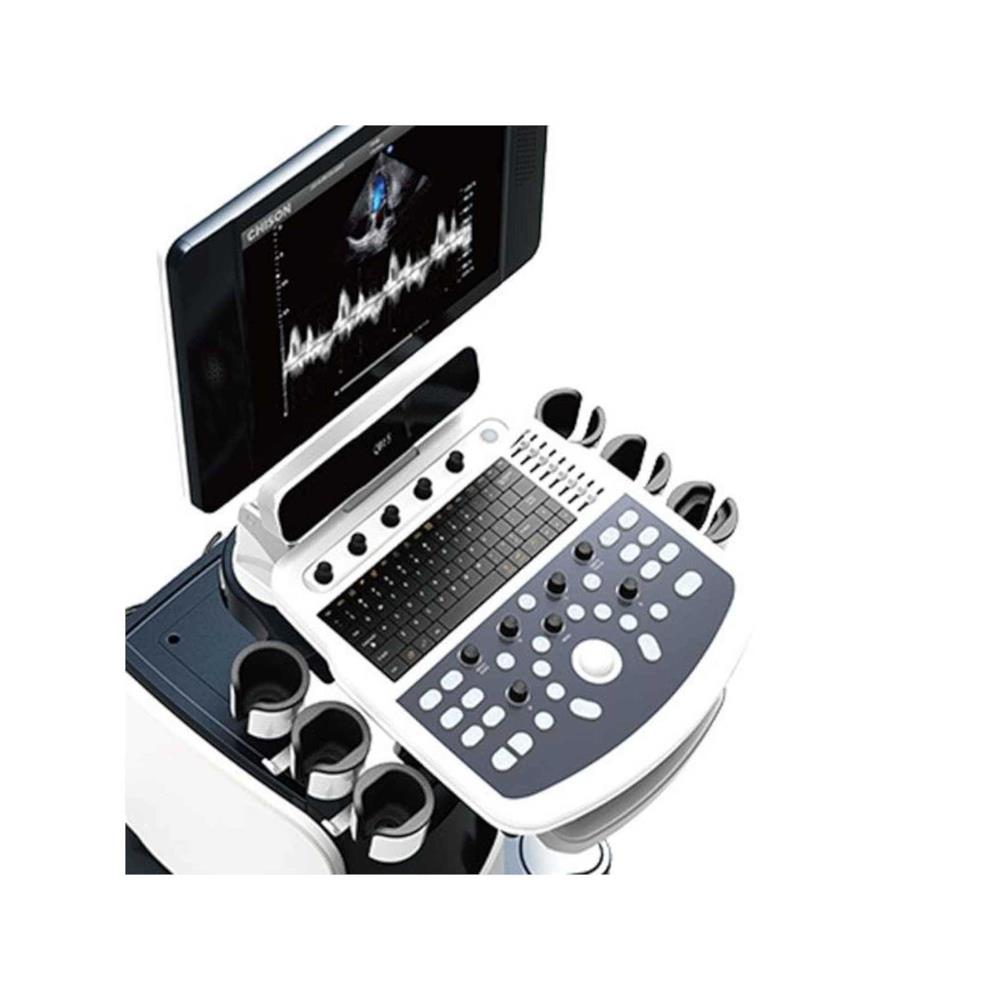

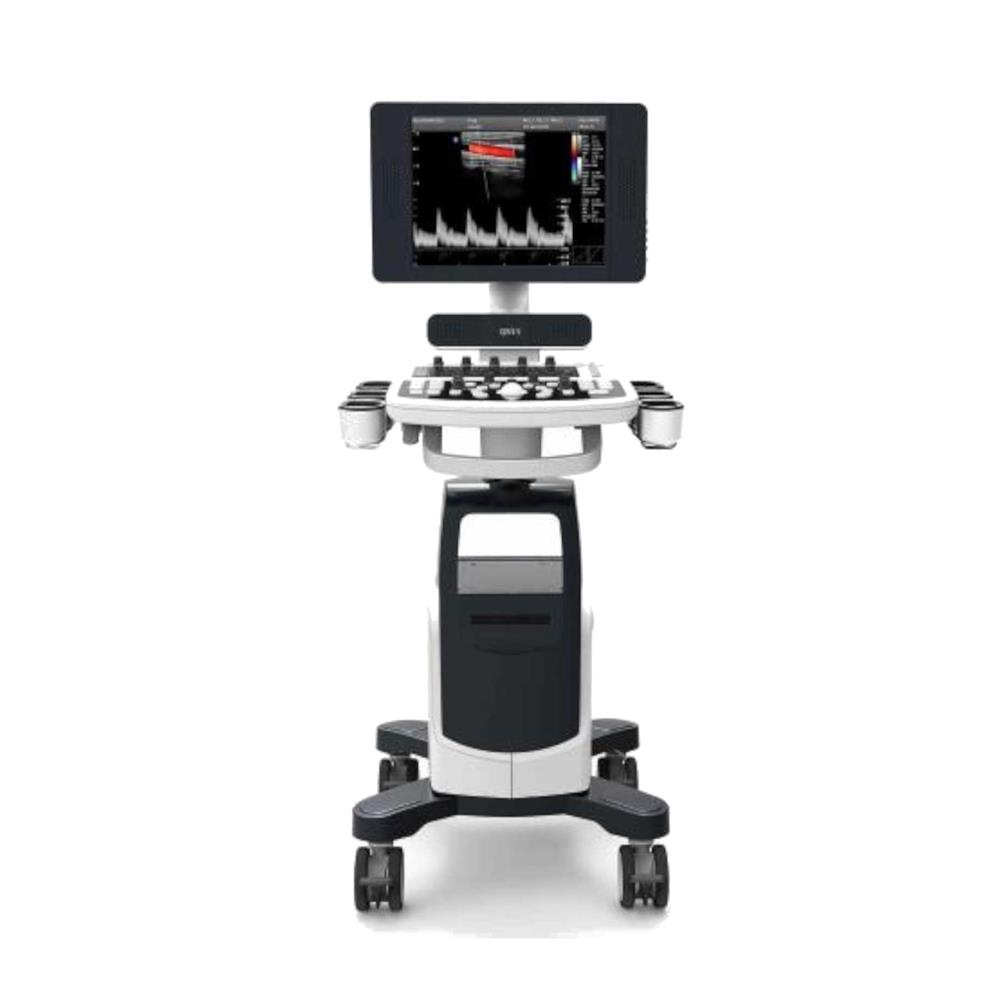

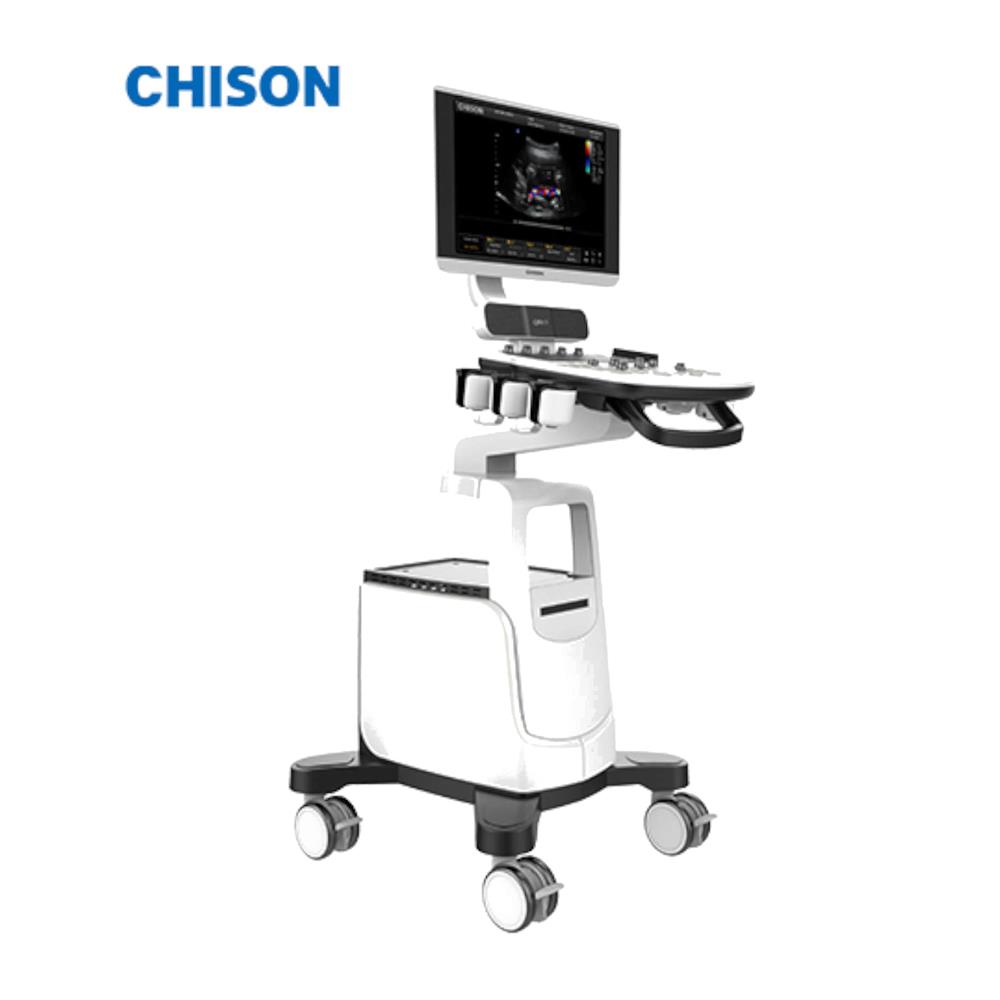

Redefine the console color doppler system.
A new ultrasound system, with 15" LED monitor, with flexible arm, control panel height and side adjustable, Tissue Harmonic Imaging, Multiple Compound Imaging, Speckle Reduction (SRA), Color Doppler, PW Doppler, Triplex, Quadplex, Trapezoidal, Chroma, integrated workstation, image and patient management on internal hard drive 320 GB, 6 USB ports, CINE Review, multi-beam shaper, 2 transducer inputs, automatic PW bypass and real time measurement, Q-Image (intelligent image optimization), user manual and more.
Full display mode
Full-screen mode without losing image resolution.
Provide you more details for more accurate diagnosis.
HIP Graf
Use a graph for hip orthotics diagnosis, help the doctor to give a more easier and more accurate diagnosis during the pediatric hip scanning.
Different angle indicate different level of hip deformity, which is more easy and obvious to see with the aid of the graph. (I, II, D, IIIa, IIIb).
Auto IMT Function
Automatically traces the intima and measures the thickness of the intime. This allows you to measure the intima faster, more easily and more accurately.
Super Needle
With Super Needle, clinicians can see needle inside tissue more clearly during medical procedures. Needle angle up to ±30o.
Advanced Technologies
X-Contrast
The Qbit allows one-touch user-adjusted contrast resolution, based upon differences in tissue density.
Enhance, Normal and Suppress settings increase or decrease contrast resolution, based on the tissue type and user preference.
FHI
FHI is an innovative harmonic imaging technology that uses multiple transmission and receiving methods based on the patient’s size and weight. This allows the Qbit to maintain image resolution when imaging larger patient.
Traditional Tissue Harmonics and Phased Harmonics compromise image quality and resolution when penetration is increased.
Chison’s FHI Technology greatly improves diagnostic abilities and clinical confidence in larger, difficult-to-image patients.
Q-Beam
Compared to the traditional dual-beam former on most ultrasound machines, the Qbit uses quad-beam technology for ultrasound signal receiving.
Doubles the volume of signals received over traditional methods, increasing image resolution and generating more accurate images.
Produces higher frame rates, ensuring better diagnostic confidence and efficiency, especially for moving organs.
Q-Flow
This adaptive color detection technology can automatically adjust the assessment of color signal and noise according to different tissues.
As a result, color sensitivity of low-velocity flow is significantly enhanced.
Specifications
Imaging modes & features
B, 2B, 4B, B/M, M
CFM, B/BC
PW, CW, Color M, TDI, ECG (optional)
PD, Directional PD
Duplex, Triplex
Trapezoidal Image Mode
2D Steer
Chroma B/M/PW
HIP graf
Full Screen
Super Needle(Optional)
Auto IMT (Optional)
DICOM
Imaging Processing Technologies
Speckle reduction Algorithm (SRA), Compound Image, Q-Image, Q-Flow, X-Contrast, Q-beam, FHI.
Professional Clinical Applications
ABD, OB/Gyn, Vascular, MSK, Small Parts, Urology, Pediatrics.
