Βipolar Surtron Touch HP 400 Watt,High frequency electrosurgical unit

Αγαπημένα

Αγαπημένα

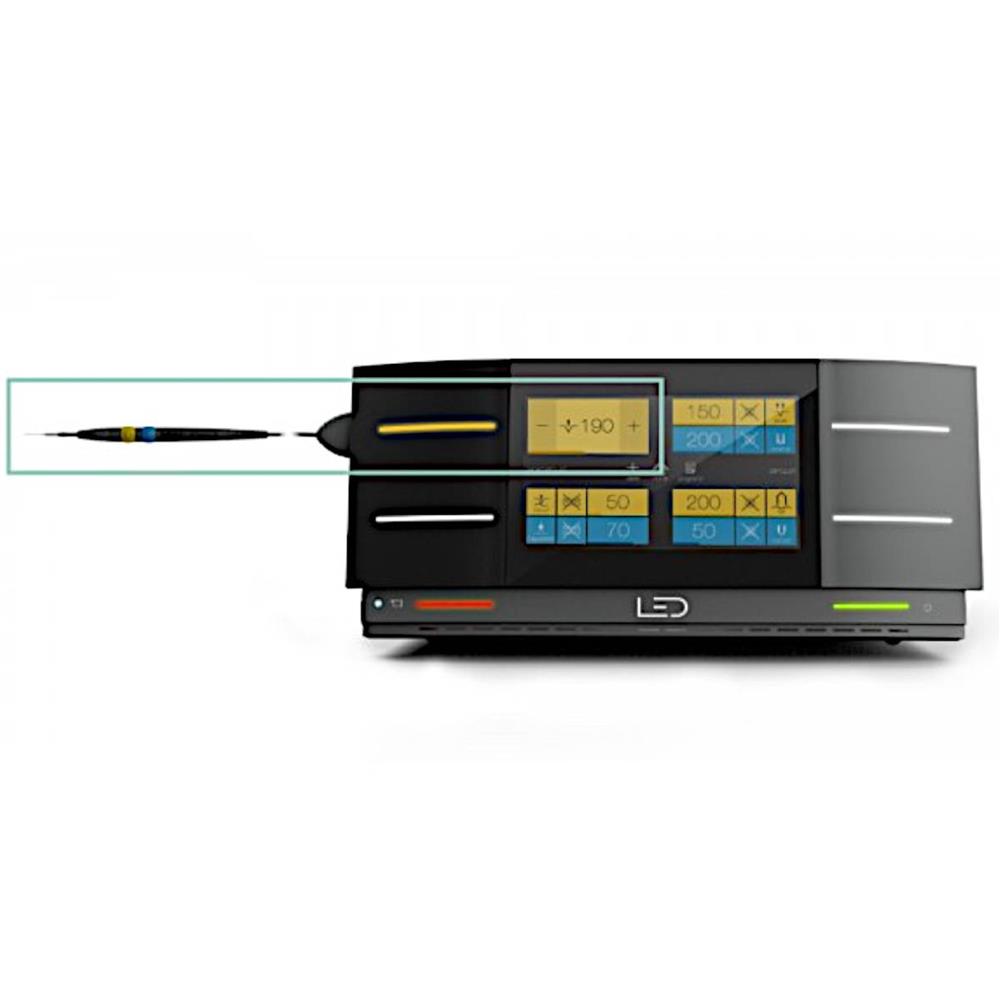

Surtron Touch HP Monopolar/Bipolar

The new generation of the electrosurgery

Performance, usability, design and reliability: these are the strengths of the new Surtron Touch HP.

A radiofrequency generator suitable for microsurgery and precise surgery in monopolar and bipolar modality.

The initial setup of Surtron Touch HP and the adjustment of settings during a surgery are easily selectable through the large touchscreen.

The simplicity of the Surtron Touch HP allows you to use it without any learning time, resulting in time savings.
An intuitive and logic work environment

Surtron Touch HP has a particularly basic and intuitive work environment.

Horizontal matching between monitors, RGB light indications and connectors provides a clear and easy-to-read overview.

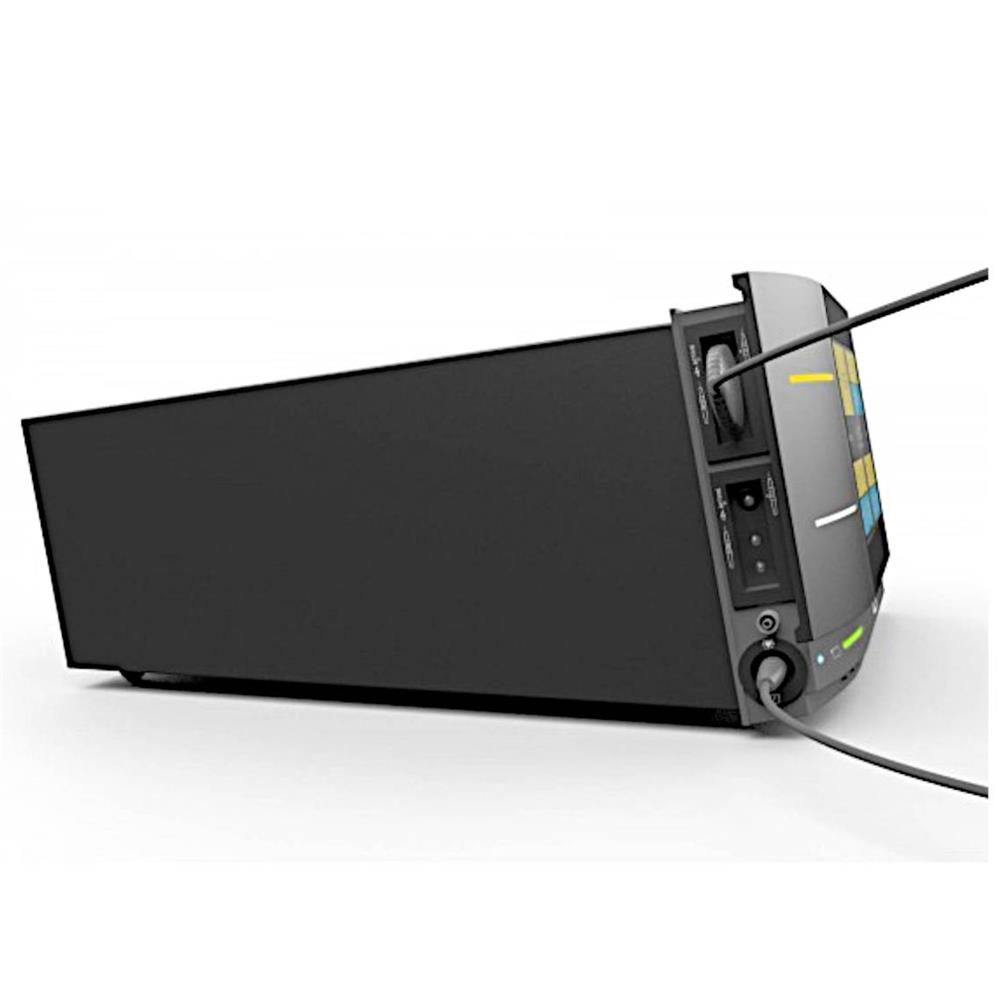

The accessories sockets are laterally placed, allowing you to control important information without disturbances such as connectors and attached accessories cables.

The large 9“capacitive touchscreen gives rise to a sleek flat front design and ensures faster and more efficient cleaning in the operating room.

Maximum output power monopolar PURE:  400 W 300 Ω

Maximum output power monopolar ENHANCED:  250 W 300 Ω

Maximum output power monopolar cut-coag BLEND:  250 W 200 Ω

Maximum output power monopolar cut DUO:  200 W 300 Ω

Maximum output power monopolar cut TUR:  300 W 300 Ω

Maximum output power monopolar coag FORCED:  150 W 150 Ω

Maximum output power monopolar coag SOFT:  150 W 200 Ω

Maximum output power monopolar coag FULGURATION:  100 W 500 Ω

Maximum output power monopolar coag DUO:  100 W 500 Ω

Maximum output power monopolar coag SPRAY:  120 W 1000 Ω

Maximum output power monopolar coag SPRAY ARGON:  120 W 1000 Ω

Maximum output power bipolar cut PURE: 150 W 100 Ω

Maximum output power bipolar cut-coag TUR:  300 W 300 Ω

Maximum output power bipolar coag BIPOLAR:  150 W 50 Ω

Maximum output power bipolar coag TUR:  250 W 50 Ω

Maximum output power bipolar coag SEALING:  250 W 50 Ω

Working frequency Monopolar / Bipolar:  360 kHz

Patient circuit:  F

ARGON flow regulation:  0.2 – 10 LPM

ARGON maximum inlet pressure:  3.0 bar (43,5psi)

Selectable input voltage:  100 – 240 Vac

Mains frequency:  50 / 60 Hz

Electrical input power:  1000 VA

Size WxHxD:  470 x 220 x 460 mm
Weight:  13,5 Kg

Features
