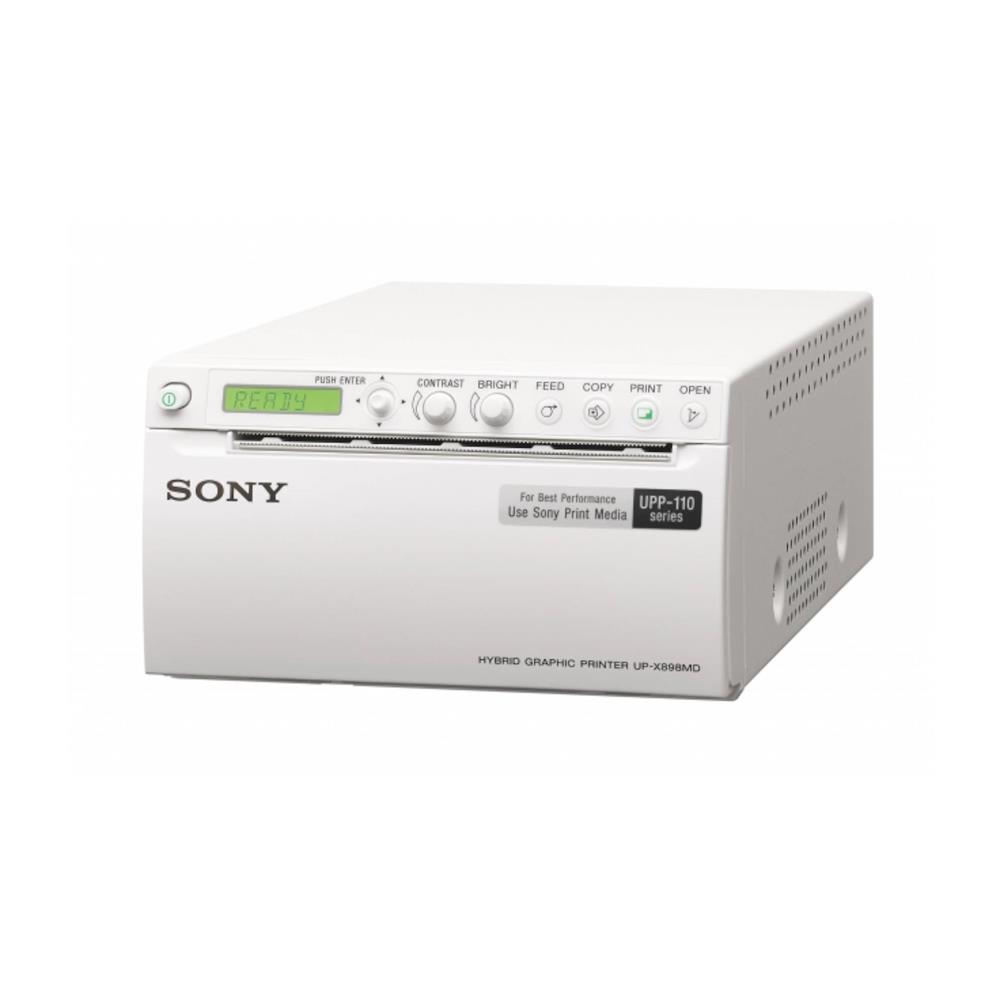

Thermal printer Sony UP-X898MD black & white
Analogue and Digital A6-Black/White-Thermoprinter UP-X898MD

UP-X898MD is a compact A6 medical grade, black and white digital printer that can accept analogue video as well as PC-friendly digital USB signal inputs.
It’s designed to be integrated into a wide range of compatible medical imaging environments such as digital ultrasound systems, mobile C-arms or cardiac catheterisation laboratory.
The high quality print engine can produce hard copy prints of still images captured by these systems for use in patient records and referrals.
For even greater convenience, printed still images can also be stored to a connected USB flash drive.

UP-X898MD is a successor to the popular Sony UP-897 series of medical printers. Redesigned and upgraded, it offers several operational and ergonomic enhancements while retaining the same space-saving footprint and easy integration into medical carts. With an enlarged LCD display panel and joystick for intuitive menu navigation. Prints high-quality black & white prints in under two seconds.
Advanced thermal printing technology delivers near-photo quality results using widely available print media.

specifications:
Printing method: Direct Thermal Printing

Resolution: 325 dpi

Gradation: 8 bits (256 levels)

Picture elements: Digital: 4096 x 1280 dots

Video NTSC: 720 x 504 dots

Video PAL: 720 x 604 dots

Picture area: Digital: 320 x 100 mm/12 5/8 x 3 7/8 inch (Max)

STD Video NTSC: 94 x 73 mm, Video PAL: 94 x 71 mm (Wide 1)

SIDE Video-NTSC: 124 x 96 mm, Video-PAL: 127 x 96 mm (Wide 1)

Paper size: Paper width of 110 mm

Print speed: High-speed mode:

Approx. 1.9 seconds per image (at standard setting)

Normal speed mode:

Approx. 3.3 seconds per image (at standard setting)

Picture memory: Digital: 4,096 x 1,280 x 8 (bit)

Video: 10 frame memories (850 k x 8 bits per frame)

Interface: USB terminal (type A) for USB flash drive (X1)

One Hi-Speed Usb2.0

One Video input: BNC type

NTSC or PAL composite video signals

1.0 Vp-p, 75 ohms (NTSC/PAL automatically discriminated)

One Video output: BNC type Loop-through

Remote: Stereo mini jack (x1) AL-composite-video-signals

1,0 Vs-s, 75 Ohm (NTSC/PAL automatically discriminated)

Video output: BNC-type (1 x), loop-through

Remote connector: Stereo mini jack

Printer driver software OS: Windows 2000/XP 32/64, Vista 32/64, 7 32/64, 8 32/64

Power requirements: 100 to 240 V AC, 50/60Hz

Operating temperature: 5°C to 40°C

Operating humidity: 20 % to 80 %

Dimensions (W x H x D): 6 1/8 x 3 1/2 x 9 1/2 inches / 154 x 88 x 240 mm

Mass: 2,5 kg
Supplied with: Thermal head cleaning sheet (1), CD-ROM (1), Before Using this Printer (1)

Service Contact List (1), USB Flash Drive Ex. Cable, Print media (UPP-110HG)
